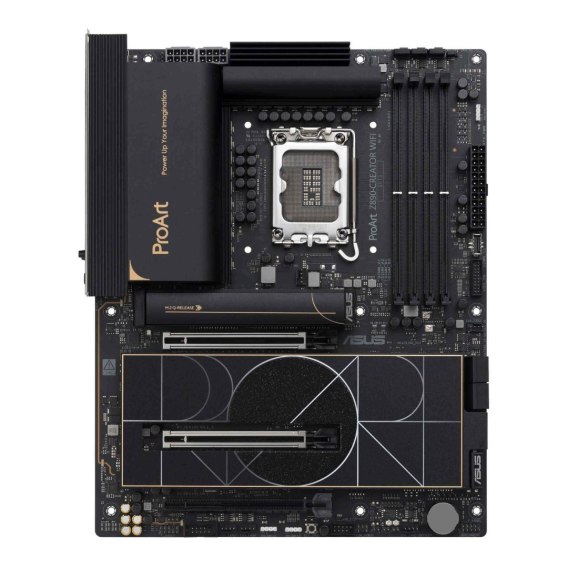

Płyta Asus ProArt Z890-CREATOR WIFI /Z890/DDR5/SATA3/M.2/TB5/WiFi/BT/PCIe5.0/s.1851/ATX
Symbol:
ProArt Z890-CREATOR WIFI
Dostępność:
Mało
5
szt.
![]()
2584.19
Zamówienie telefoniczne: 606906465 Zostaw telefon
Wysyłka w ciągu:
24 godziny
Cena przesyłki:
0
Obsługiwane typy procesorów: Intel Core Ultra Processors (series 2)
Uwagi do procesora: Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0, Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Format płyty: ATX
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE
Chipset płyty głównej: Intel® Z890
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 192 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-9066+ (OC)
Uwagi do pamięci RAM: Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered, DIMM (CUDIMM), Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III (AEMP III), Support DIMM Fit, Support DIMM Flex
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5
Uwagi do kontrolera SATA: Intel Core Ultra Processors (series 2):, - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel® Z890 Chipset:, - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes), - M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA mode, 4 x SATA 6Gb/s ports, M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is, operating, PCIe 4.0 x16 slot will be disabled.
Gniazda karty graficznej: HDMI, Thunderbolt™ 4, 2x Thunderbolt™ 5 (USB Type-C®)
Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to, Supports 4K@60Hz as specified in HDMI 2.1, Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in, Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in, For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5, bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We, recommend chain-connecting the monitors using verified Thunderbolt™ cables
Zintegrowana karta dźwiękowa: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej: Wewnętrzne gniazdo audio przedniego panelu, 2x Audio Jack
Uwagi do karty dźwiękowej: Impedance sense for front and rear headphone outputs, Internal audio Amplifier to enhance the highest quality sound for headphone, and speakers, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording, input (Line-in), Supports up to 32-Bit/192 kHz playback*Audio Features, Gold-plated audio jacks, Premium audio capacitors, Dedicated audio PCB layers, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for, 7.1 Surround Sound audio., A chassis with an HD audio module in the front panel is required to support, 7.1 Surround Sound audio output.
Złącza PCI Express x16: 3
Uwagi do złącz PCI: Intel Core Ultra Processors (series 2):, - 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes), Intel® Z890 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode), Please check the PCIe bifurcation table on the support site, To ensure compatibility of the device installed, please refer to
Port LAN: 1x 10 Gigabit LAN Marvell® AQtion, 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Intel®)
Uwagi do karty sieciowej: ASUS LANGuard
Maksymalna ilość portów USB 2.0: 2
Maksymalna ilość portów USB 3.x: 8
Maksymalna ilość portów USB 4.0: 3
Porty USB na panelu tylnym: 1x USB 2.0 + 6x USB 3.1 + 1x Thunderbolt 4 + 2x Thunderbolt 5
Gniazda USB na płycie głównej: 1x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate., Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E, For Windows 10, only Wi-Fi 6 is supported
Port PS/2: Brak
Port szeregowy (COM): 1x wewnętrzne gniazdo portu COM
Port równoległy (LPT): Brak
Inne porty i gniazda: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 5x 4-pin Chassis Fan header(s), 3x Addressable Gen 2 header, Thermal Sensor header, Chassis intrusion header, SPI TPM header (14-1pin), 10-1 pin System Panel header, BIOS FlashBack button , Clear CMOS button(s), Wi-Fi module with an antenna connector
Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (mm): 305 x 244
Opakowanie: BOX
Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x Q-connector, 2 x M.2 Q-Latch packages, 2 x M.2 rubber packages, 1 x ProArt accessory bag, 1 x ACC Express activation key card, 1 x Quick start guide
Informacje dodatkowe: Operating System: Windows 11 (22H2 & later)
Wyposażenie dodatkowe:
1 x ACC Express Activation Key Card, 1 x ProArt accessory bag, 1x ASUS WiFi Q-Antenna, 1x Q-connector, 1x Quick start guide, 2 x M.2 Q-Latch packages, 2 x M.2 Rubber Packages, 2x SATA 6Gb/s cables
Opakowanie:
BOX
Port Bluetooth:
Bluetooth V5.4
Format płyty:
ATX
Wymiary [S x W] (mm):
305 x 244
Maksymalna wielkość pamięci:
192 GB
Port LAN:
1x 10 Gigabit LAN Marvell® AQtion, 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Intel®)
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax/be
Chipset płyty głównej:
Intel® Z890
Standard pamięci:
DDR5-9066+ (OC)
Gniazdo procesora:
Socket 1851
Obsługiwane typy procesorów:
Intel Core Ultra Processors (series 2)
Uwagi do procesora:
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0
BIOS:
256Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do pamięci RAM:
ASUS Enhanced Memory Profile III (AEMP III), DIMM (CUDIMM), Support DIMM Fit, Support DIMM Flex, Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered, Supports Intel® Extreme Memory Profile (XMP) memory module
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5
Uwagi do kontrolera SATA:
- M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes), - M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA mode, 4 x SATA 6Gb/s ports, Intel® Core™ Ultra Processors(series 2):, Intel® Z890 Chipset:, M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is, operating, PCIe 4.0 x16 slot will be disabled.
Gniazda karty graficznej:
2x Thunderbolt™ 5 (USB Type-C®), HDMI, Thunderbolt™ 4
Uwagi do karty graficznej:
bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We, For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5, Graphics specifications may vary between CPU types. Please refer to, recommend chain-connecting the monitors using verified Thunderbolt™ cables, Supports 4K@60Hz as specified in HDMI 2.1, Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in, Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in
Zintegrowana karta dźwiękowa:
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej:
2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x16:
3
Uwagi do złącz PCI:
- 1 x PCIe 4.0 x16 slot (supports x4 mode), - 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes), Intel Core Ultra Processors (series 2):, Intel® Z890 Chipset:, Please check the PCIe bifurcation table on the support site, To ensure compatibility of the device installed, please refer to
Uwagi do karty sieciowej:
ASUS LANGuard
Maksymalna ilość portów USB 2.0:
2
Maksymalna ilość portów USB 3.x:
8
Porty USB na panelu tylnym:
1x USB 2.0 + 6x USB 3.1 + 1x Thunderbolt 4 + 2x Thunderbolt 5
Gniazda USB na płycie głównej:
1x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
Port PS/2:
Brak
Inne porty i gniazda:
10-1 pin System Panel header, 3x Addressable Gen 2 header, 4-pin AIO Pump header, 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 5x 4-pin Chassis Fan header(s), BIOS FlashBack button , Chassis intrusion header, Clear CMOS button(s), SPI TPM header (14-1pin), Thermal Sensor header, Wi-Fi module with an antenna connector
Gniazdo zasilania:
ATX (24-pin) + 2x ATX12V (8-pin)
Uwagi do karty dźwiękowej:
7.1 Surround Sound audio output., 7.1 Surround Sound audio., A chassis with an HD audio module in the front panel is required to support, and speakers, Dedicated audio PCB layers, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for, Gold-plated audio jacks, High quality 120 dB SNR stereo playback output and 113 dB SNR recording, Impedance sense for front and rear headphone outputs, input (Line-in), Internal audio Amplifier to enhance the highest quality sound for headphone, Premium audio capacitors, Supports up to 32-Bit/192 kHz playback*Audio Features, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Port szeregowy (COM):
1x wewnętrzne gniazdo portu COM
Port równoległy (LPT):
Brak
Ilość złącz pamięci DDR5:
4
Uwagi do WiFi / BT:
2x2 Wi-Fi 7 (802.11be), For Windows 10, only Wi-Fi 6 is supported, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E, Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate., Supports 2.4/5/6GHz frequency band, Wi-Fi features may vary depending on the operating system
Maksymalna ilość portów USB 4.0:
3
