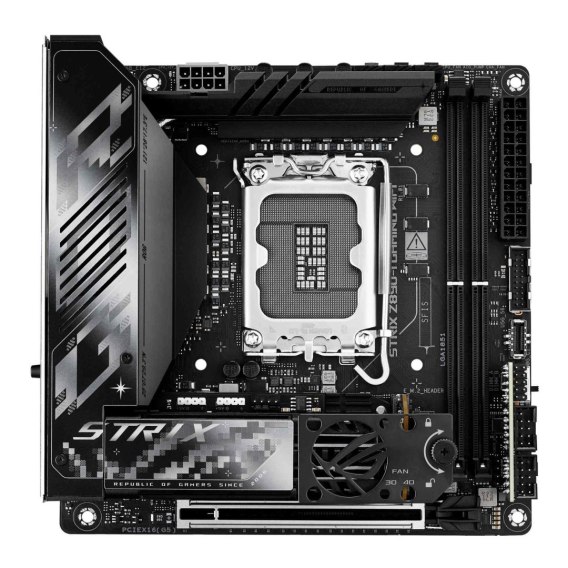

Płyta Asus ROG STRIX Z890-I GAMING WIFI /Z890/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/s.1851/Mini-ITX
Symbol:
ROG STRIX Z890-I GAMING WIFI
Dostępność:
Mało
2
szt.
![]()
2058.11
Zamówienie telefoniczne: 606906465 Zostaw telefon
Wysyłka w ciągu:
24 godziny
Cena przesyłki:
0
Obsługiwane typy procesorów: Intel Core Ultra Processors (series 2)
Uwagi do procesora: Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0, Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Format płyty: Mini-ITX
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE
Chipset płyty głównej: Intel® Z890
Ilość złącz pamięci DDR5: 2
Maksymalna wielkość pamięci: 96 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-8800+ (OC)
Uwagi do pamięci RAM: Support up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III (AEMP III), Supports DIMM Flex, Supports DIMM Fit, NitroPath DRAM Technology
Zintegrowany kontroler SATA: Chipset: 2x SATA III 6Gb/s + 2x M.2
Uwagi do kontrolera SATA: Intel Core Ultra Processors (series 2):, - M.2_1 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode), - 2 x SATA 6Gb/s ports, Intel® Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1, M.2_2 slot shares bandwidth with PCIEX16(G5). When M.2_2 slot is occupie, occupied with SSD device, PCIEX16(G5) will run x8 only, Install ROG FPS Card to support 2 x SATA 6Gb/s ports
Gniazda karty graficznej: HDMI, 2x Thunderbolt™ 4 (USB Type-C®)
Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to, Supports max. 8K@60Hz with DSC as specified in HDMI 2.1, Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps,, for resolution support please check DisplayPort 2.1 specs, VGA resolution support depends on processors' or graphic cards' resolution
Zintegrowana karta dźwiękowa: ROG High Definition Audio CODEC ALC4050
Gniazda karty dźwiękowej: Wewnętrzne gniazdo audio przedniego panelu
Uwagi do karty dźwiękowej: Supports: Jack-detection, High quality 121 dB SNR stereo playback output and 94 dB SNR recording inpu, Supports up to 32-Bit/384 kHz playback, ROG Hyper-Grounding Technology, ESS® SABRE9260Q DAC, Premium audio capacitors, All audio functions on ROG STRIX Z890-I GAMING WIFI are supported, through the ROG STRIX HIVE II
Złącza PCI Express x16: 1
Uwagi do złącz PCI: Intel Core Ultra Processors (series 2):, - 1 x PCIe 5.0 x16 slot*** (supports x16 mode), Please check the PCIe bifurcation table on the support site, To ensure compatibility of the device installed, please refer to
Port LAN: 1x 2,5 Gigabit LAN Intel®
Uwagi do karty sieciowej: ASUS LANGuard
Maksymalna ilość portów USB 2.0: 2
Maksymalna ilość portów USB 3.x: 8
Maksymalna ilość portów USB 4.0: 2
Porty USB na panelu tylnym: 2x USB 2.0 + 1x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C + 2x Thunderbolt 4 (USB- Type-C)
Gniazda USB na płycie głównej: 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate., Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E, For Windows 10, only Wi-Fi 6 is supported
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 4-pin Chassis Fan header, Extra Flow Fan header, 2x Addressable Gen 2 header, Thermal Sensor header, Alteration PCIe mode switch, CPU Over Voltage jumper, Clear CMOS button(s), BIOS FlashBack button , Wi-Fi module with an antenna connector
Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin)
Wymiary [S x W] (mm): 170 x 170
Opakowanie: BOX
Wyposażenie dodatkowe: 1 x ROG USB2.0 splitter cable, 2 x SATA 6Gb/s cables, 1 x Panel Cable, 1 x ROG FPS Card, 1 x ROG STRIX HIVE II, 1 x USB Type-C® power connection cable, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x Quick start guide
Informacje dodatkowe: Operating System: Windows 11 (22H2 later), ROG STRIX HIVE II:, - 2 x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x Type-A), ROG FPS Card:, - 2 x USB 2.0 header(s) additional 3 USB 2.0 ports
Wyposażenie dodatkowe:
1 x Panel cable, 1 x ROG FPS Card, 1 x ROG STRIX HIVE II, 1 x ROG USB2.0 splitter cable, 1 x USB Type-C® power connection cable, 1x ASUS WiFi Q-Antenna, 1x Cable ties package, 1x Quick start guide, 1x ROG key chain, 1x ROG Strix stickers, 2x SATA 6Gb/s cables
Opakowanie:
BOX
Port Bluetooth:
Bluetooth V5.4
Format płyty:
Mini-ITX
Wymiary [S x W] (mm):
170 x 170
Maksymalna wielkość pamięci:
96 GB
Port LAN:
1x 2,5 Gigabit LAN Intel®
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax/be
Chipset płyty głównej:
Intel® Z890
Standard pamięci:
DDR5-8800+ (OC)
Gniazdo procesora:
Socket 1851
Obsługiwane typy procesorów:
Intel Core Ultra Processors (series 2)
Uwagi do procesora:
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0
BIOS:
256Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do pamięci RAM:
ASUS Enhanced Memory Profile III (AEMP III), Support up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM, Supports DIMM Flex, Supports DIMM Fit, NitroPath DRAM Technology, Supports Intel® Extreme Memory Profile (XMP) memory module
Zintegrowany kontroler SATA:
Chipset: 2x SATA III 6Gb/s + 2x M.2
Uwagi do kontrolera SATA:
- 2 x SATA 6Gb/s ports, - M.2_1 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode), Install ROG FPS Card to support 2 x SATA 6Gb/s ports, Intel® Core™ Ultra Processors(series 2):, Intel® Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1, M.2_2 slot shares bandwidth with PCIEX16(G5). When M.2_2 slot is occupie, occupied with SSD device, PCIEX16(G5) will run x8 only
Gniazda karty graficznej:
2x Thunderbolt™ 4 (USB Type-C®), HDMI
Uwagi do karty graficznej:
for resolution support please check DisplayPort 2.1 specs, Graphics specifications may vary between CPU types. Please refer to, Supports max. 8K@60Hz with DSC as specified in HDMI 2.1, Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps,, VGA resolution support depends on processors' or graphic cards' resolution
Zintegrowana karta dźwiękowa:
ROG High Definition Audio CODEC ALC4050
Gniazda karty dźwiękowej:
Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x16:
1
Uwagi do złącz PCI:
- 1 x PCIe 5.0 x16 slot*** (supports x16 mode), Intel Core Ultra Processors (series 2):, Please check the PCIe bifurcation table on the support site, To ensure compatibility of the device installed, please refer to
Uwagi do karty sieciowej:
ASUS LANGuard
Maksymalna ilość portów USB 2.0:
2
Maksymalna ilość portów USB 3.x:
8
Porty USB na panelu tylnym:
2x USB 2.0 + 1x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C + 2x Thunderbolt 4 (USB- Type-C)
Gniazda USB na płycie głównej:
1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C
Port PS/2:
Brak
Inne porty i gniazda:
2x Addressable Gen 2 header, 4-pin AIO Pump header, 4-pin Chassis Fan header, 4-pin CPU Fan header, 4-pin CPU OPT Fan header, Alteration PCIe mode switch, BIOS FlashBack button , Clear CMOS button(s), CPU Over Voltage jumper, Extra Flow Fan header, Thermal Sensor header, Wi-Fi module with an antenna connector
Gniazdo zasilania:
ATX (24-pin) + ATX12V (8-pin)
Uwagi do karty dźwiękowej:
All audio functions on ROG STRIX Z890-I GAMING WIFI are supported, ESS® SABRE9260Q DAC, High quality 121 dB SNR stereo playback output and 94 dB SNR recording inpu, Premium audio capacitors, ROG Hyper-Grounding Technology, Supports up to 32-Bit/384 kHz playback, Supports: Jack-detection, through the ROG STRIX HIVE II
Port szeregowy (COM):
Brak
Port równoległy (LPT):
Brak
Ilość złącz pamięci DDR5:
2
Uwagi do WiFi / BT:
2x2 Wi-Fi 7 (802.11be), For Windows 10, only Wi-Fi 6 is supported, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E, Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate., Supports 2.4/5/6GHz frequency band, Wi-Fi features may vary depending on the operating system
Maksymalna ilość portów USB 4.0:
2
