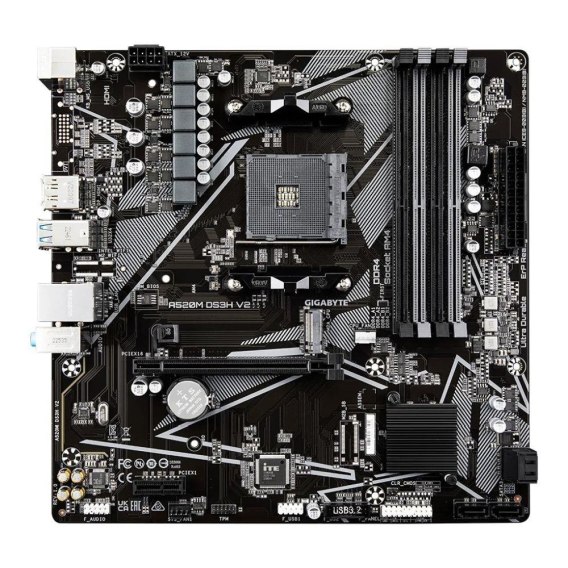

Płyta Gigabyte A520M DS3H V2 (rev. 1.0) /AMD A520/DDR4/SATA3/M.2/USB3.0/PCIe3.0/AM4/mATX
Symbol:
A520M DS3H V2
Dostępność:
Mało
1
szt.
Cena:276.85
szt.
Zamówienie telefoniczne: 606906465
Dostępność i dostawa
Wysyłka w ciągu: 24 godziny
Cena przesyłki:
0
Kurier (Pobranie)0
Paczkomaty InPost12
Kurier35
Kod kreskowy:
EAN:
4719331854690
Gniazdo procesora: Socket AM4 (1331)
Obsługiwane typy procesorów: AMD Ryzen™
Uwagi do procesora: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/, Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors, Please refer "CPU Support List" for more information *
Uwagi do pamięci RAM: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules, Please refer "Memory Support List" for more information
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 1x M.2
Uwagi do kontrolera SATA: 1x M.2 connector, integrated in the CPU, supporting Socket 3,, M key, type 2280 SSDs (Supporting SATA and PCIe 3.0 x4/x2 SSDs), 4x SATA 6Gb/s connectors, integrated in the Chipset
Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)
Gniazda karty graficznej: DisplayPort, HDMI
Uwagi do karty graficznej: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for DisplayPort 1.4 version, HDCP 2.3, and HDR, Support for HDMI 2.1 version, HDCP 2.3, and HDR, Maximum shared memory of 16 GB
Zintegrowana karta dźwiękowa: Realtek® ALC 887 7.1-Channel High Definition Audio CODEC
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/, Please refer "CPU Support List" for more information *, Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Please refer "Memory Support List" for more information, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, Support for Extreme Memory Profile (XMP) memory modules, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 1x M.2
Uwagi do kontrolera SATA:
1x M.2 connector, integrated in the CPU, supporting Socket 3,, 4 x SATA 6Gb/s connectors, integrated in the Chipset:, M key, type 2280 SSDs (Supporting SATA and PCIe 3.0 x4/x2 SSDs)
Gniazda karty graficznej:
DisplayPort, HDMI
Uwagi do karty graficznej:
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Maximum shared memory of 16 GB, Support for DisplayPort 1.4 version, HDCP 2.3, and HDR, Support for HDMI 2.1 version, HDCP 2.3, and HDR
Zintegrowana karta dźwiękowa:
Realtek® ALC 887 7.1-Channel High Definition Audio CODEC
