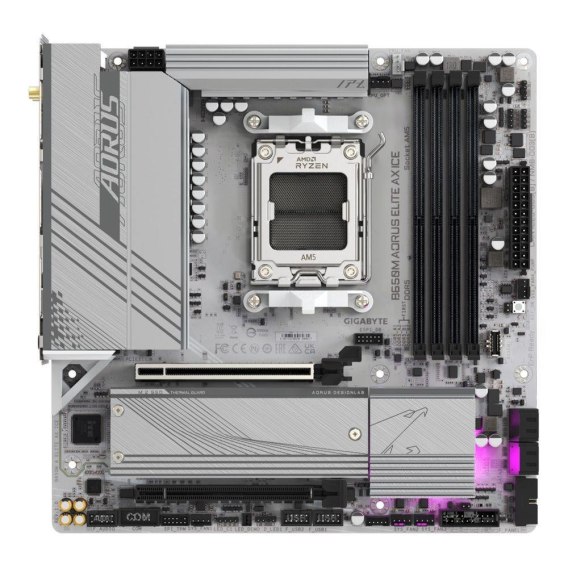

Płyta Gigabyte B650M A ELITE AX ICE /AMD B650/DDR5/SATA3/M.2/USB3.2/PCIe5.0/WiFi/BT/AM5/mATX

Symbol: B650M A ELITE AX ICE
Dostępność: Mało
728.21
szt.
Zamówienie telefoniczne: 606906465 Zostaw telefon
Wysyłka w ciągu: 24 godziny
Cena przesyłki:
0
  • Kurier (Pobranie) 0
  • Paczkomaty InPost 12
  • Kurier 35
Gniazdo procesora: Socket AM5

Obsługiwane typy procesorów: AMD Ryzen™

Uwagi do procesora: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Format płyty: Micro-ATX

BIOS: 256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset płyty głównej: AMD B650

Ilość złącz pamięci DDR5: 4

Maksymalna wielkość pamięci: 256 GB

Tryb pracy pamięci RAM: Dual Channel

Standard pamięci: DDR5-4800, DDR5-5200, DDR5-5600 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC)

Uwagi do pamięci RAM: Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and, Extreme Memory Profile (XMP) memory modules

Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 2x M.2 - RAID 0, 1, 10

Uwagi do kontrolera SATA: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, M key, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support, PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3,, M key, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support, PCIe 4.0 x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, 4 x SATA 6Gb/s connectors

Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficznej: HDMI, DisplayPort

Uwagi do karty graficznej: Integrated Graphics Processor:, - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 1.4 version and HDR., - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3, Support for native HDMI 2.1 TMDS compatible ports

Zintegrowana karta dźwiękowa: Realtek® HD Audio CODEC

Gniazda karty dźwiękowej: 2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wewnętrzne gniazdo S/PDIF Out

Uwagi do karty dźwiękowej: Ilość kanałów audio 2/4/5.1/7.1, You can change the functionality of an audio jack using the audio software., To configure 7.1-channel audio, access the audio software for, audio settings

Złącza PCI Express x16: 2

Uwagi do złącz PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support, PCIe 4.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, The PCIEX16 slot can only support a graphics card or an NVMe SSD, If only one graphics card is to be installed, be sure to install it in the, PCIEX16 slot, 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Maksymalna ilość portów USB 2.0: 8

Maksymalna ilość portów USB 3.x: 11

Porty USB na panelu tylnym: 4x USB 2.0 + 5x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie głównej: 2x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax

Port Bluetooth: Bluetooth V5.3

Uwagi do WiFi / BT: Realtek® RTL8852CE WIFI 6 module, - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, - Support for 11ax wireless standard, Actual data rate may vary depending on environment and equipment.

Port PS/2: Brak

Port szeregowy (COM): 1x wewnętrzne gniazdo portu COM

Port równoległy (LPT): Brak

Inne porty i gniazda: CPU fan header, CPU fan/water cooling pump header, 3x system fan headers, System fan/water cooling pump header, 2x Addressable LED strip headers, 2x RGB LED strip headers, CPU cooler LED strip/RGB LED strip extension cable header, Trusted Platform Module header, Q-Flash Plus button, Reset jumper, Clear CMOS jumper, 2x SMA antenna connectors (2T2R), Reset button

Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin)

Wymiary [S x W] (mm): 244 x 174

Opakowanie: BOX

Informacje dodatkowe: Bundled Software, - Norton® Internet Security (OEM version), - LAN bandwidth management software, System operacyjny:, - Support for Windows 11 64-bit, - Support for Windows 10 64-bit
Parametry:
Opakowanie:
BOX
Port Bluetooth:
Bluetooth V5.3
Format płyty:
Micro-ATX
Wymiary [S x W] (mm):
244 x 174
Maksymalna wielkość pamięci:
256 GB
Port LAN:
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax
Wbudowana karta graficzna:
Brak lub AMD Radeon™ Graphics (zależy od procesora)
Chipset płyty głównej:
AMD B650
Standard pamięci:
DDR5-4800, DDR5-5200, DDR5-5600 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC)
Gniazdo procesora:
Socket AM5
Obsługiwane typy procesorów:
AMD Ryzen™
Uwagi do procesora:
AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
BIOS:
256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do pamięci RAM:
Extreme Memory Profile (XMP) memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 2x M.2 - RAID 0, 1, 10
Uwagi do kontrolera SATA:
- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3,, 4 x SATA 6Gb/s connectors, M key, type 25110/22110/2580/2280 SSDs:, PCIe 4.0 x2 SSDs, PCIe 5.0 x4/x2 SSDs
Gniazda karty graficznej:
DisplayPort, HDMI
Uwagi do karty graficznej:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Integrated Graphics Processor:, Support for DisplayPort 1.4 version and HDR., Support for HDMI 2.1 version and HDCP 2.3, Support for native HDMI 2.1 TMDS compatible ports
Zintegrowana karta dźwiękowa:
Realtek® HD Audio CODEC
Gniazda karty dźwiękowej:
2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wewnętrzne gniazdo S/PDIF Out
Złącza PCI Express x16:
2
Uwagi do złącz PCI:
- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), If only one graphics card is to be installed, be sure to install it in the, PCIe 4.0 x16 mode, PCIEX16 slot, The PCIEX16 slot can only support a graphics card or an NVMe SSD
Maksymalna ilość portów USB 2.0:
8
Maksymalna ilość portów USB 3.x:
11
Porty USB na panelu tylnym:
4x USB 2.0 + 5x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C
Gniazda USB na płycie głównej:
2x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
Port PS/2:
Brak
Inne porty i gniazda:
2x Addressable LED strip headers, 2x RGB LED strip headers, 2x SMA antenna connectors (2T2R), 3x system fan headers, Clear CMOS jumper, CPU cooler LED strip/RGB LED strip extension cable header, CPU fan header, CPU fan/water cooling pump header, Q-Flash Plus button, Reset button, Reset jumper, System fan/water cooling pump header, Trusted Platform Module header
Gniazdo zasilania:
ATX (24-pin) + ATX12V (8-pin)
Uwagi do karty dźwiękowej:
audio settings, Ilość kanałów audio 2/4/5.1/7.1, To configure 7.1-channel audio, access the audio software for, You can change the functionality of an audio jack using the audio software.
Port szeregowy (COM):
1x wewnętrzne gniazdo portu COM
Port równoległy (LPT):
Brak
Ilość złącz pamięci DDR5:
4
Uwagi do WiFi / BT:
- Support for 11ax wireless standard, - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, Actual data rate may vary depending on environment and equipment., Realtek® RTL8852CE WIFI 6 module
