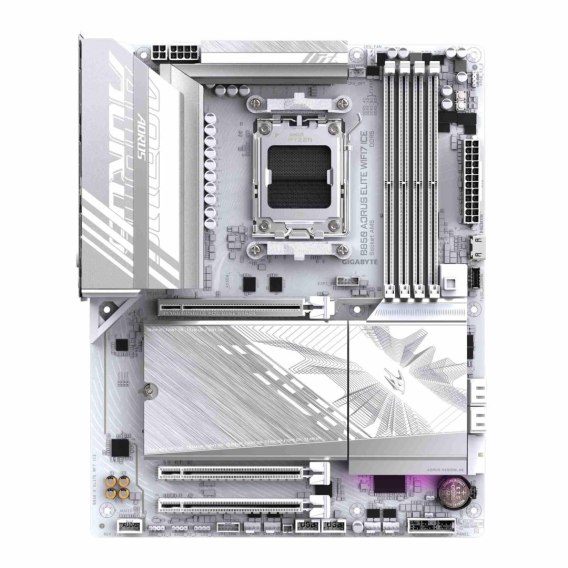

Płyta Gigabyte B850 A ELITE WF7 ICE /AMD B850/DDR5/SATA3/M.2/USB3.2/PCIe5.0/WiFi/BT/AM5/ATX
Symbol:
B850 A ELITE WF7 ICE
Dostępność:
Brak towaru
0
szt.
![]()
Wpisz swój adres e-mail
955.19
Zamówienie telefoniczne: 606906465 Zostaw telefon
Wysyłka w ciągu:
24 godziny
Cena przesyłki:
0
Obsługiwane typy procesorów: AMD Ryzen™
Uwagi do procesora: AMD Socket AM5, support for:, AMD Ryzen™ 9000 Series Processors/, AMD Ryzen™ 8000 Series Processors/, AMD Ryzen™ 7000 Series Processors
Format płyty: ATX
BIOS: 256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset płyty głównej: AMD B850
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 256 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-8200 (OC), DDR5-8000 (OC), DDR5-7800 (OC), DDR5-7600 (OC), DDR5-7200 (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6666 (OC), DDR5-6600 (OC), DDR5-6400 (OC), DDR5-6200 (OC), DDR5-6000 (OC), DDR5-5600 (OC), DDR5-5200, DDR5-4800, DDR5-4400
Uwagi do pamięci RAM: Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and, Extreme Memory Profile (XMP) memory modules
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0,1,5,10
Uwagi do kontrolera SATA: 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, M key, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,, M key, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3,, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices, RAID 5 is only available on AMD Ryzen™ 9000 Series Processors
Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)
Gniazda karty graficznej: DisplayPort, HDMI
Uwagi do karty graficznej: Integrated Graphics Processor with AMD Radeon™ Graphics support:, - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 1.4 version and HDR., - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz, Support for HDMI 1.4 version
Zintegrowana karta dźwiękowa: Realtek ALC1220 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej: 2x Audio Jack, Wyjście optyczne S/PDIF, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x16: 3
Uwagi do złącz PCI: CPU:, 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, The PCIEX16 slot can only support a graphics card or an NVMe SSD, Chipset:, - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
Maksymalna ilość portów USB 2.0: 8
Maksymalna ilość portów USB 3.x: 11
Porty USB na panelu tylnym: 4x USB 2.0 + 5x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: Support for 11be 160MHz wireless standard(Actual data rate may vary, depending on environment and equipment., Wi-Fi 7 features require Windows 11 SV3 to function properly (There is no, support driver for Windows 10), Wi-Fi 7 channels on 6GHz band availability depends on individual country's, regulations
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: CPU fan header, CPU fan/water cooling pump header, 3x system fan headers, System fan/water cooling pump header, RGB LED strip header, Gniazdo modułu TPM, Reset button, Reset jumper, Clear CMOS jumper, Power-on button(s), Q-Flash Plus button, 2x SMA antenna connectors (2T2R)
Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)
Wymiary [S x W] (mm): 305 x 244
Opakowanie: BOX
Informacje dodatkowe: Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup, Support for Windows 11 64-bit, Bundled Software:, - LAN bandwidth management software, - Norton® Internet Security (OEM version)
Opakowanie:
BOX
Port Bluetooth:
Bluetooth V5.4
Format płyty:
ATX
Wymiary [S x W] (mm):
305 x 244
Maksymalna wielkość pamięci:
256 GB
Port LAN:
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax/be
Wbudowana karta graficzna:
Brak lub AMD Radeon™ Graphics (zależy od procesora)
Chipset płyty głównej:
AMD B850
Standard pamięci:
DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5600 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6666 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC)
Gniazdo procesora:
Socket AM5
Obsługiwane typy procesorów:
AMD Ryzen™
Uwagi do procesora:
AMD Ryzen™ 7000 Series Processors, AMD Ryzen™ 8000 Series Processors/, AMD Ryzen™ 9000 Series Processors/, AMD Socket AM5, support for:
BIOS:
256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do pamięci RAM:
Extreme Memory Profile (XMP) memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0,1,5,10
Uwagi do kontrolera SATA:
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,, 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3,, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs, M key, type 25110/22110/2580/2280 SSDs:, RAID 0, RAID 1, and RAID 10 support for SATA storage devices, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 5 is only available on AMD Ryzen™ 9000 Series Processors
Gniazda karty graficznej:
DisplayPort, HDMI
Uwagi do karty graficznej:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz, Integrated Graphics Processor with AMD Radeon™ Graphics support:, Support for DisplayPort 1.4 version and HDR., Support for HDMI 1.4 version
Zintegrowana karta dźwiękowa:
Realtek ALC1220 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej:
2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF
Złącza PCI Express x16:
3
Uwagi do złącz PCI:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, Chipset:, CPU:, The PCIEX16 slot can only support a graphics card or an NVMe SSD
Maksymalna ilość portów USB 2.0:
8
Maksymalna ilość portów USB 3.x:
11
Porty USB na panelu tylnym:
4x USB 2.0 + 5x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C
Gniazda USB na płycie głównej:
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
Port PS/2:
Brak
Inne porty i gniazda:
2x SMA antenna connectors (2T2R), 3x system fan headers, Clear CMOS jumper, CPU fan header, CPU fan/water cooling pump header, Gniazdo modułu TPM, Power-on button(s), Q-Flash Plus button, Reset button, Reset jumper, RGB LED strip header, System fan/water cooling pump header
Gniazdo zasilania:
ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)
Port szeregowy (COM):
Brak
Port równoległy (LPT):
Brak
Ilość złącz pamięci DDR5:
4
Uwagi do WiFi / BT:
depending on environment and equipment., regulations, support driver for Windows 10), Support for 11be 160MHz wireless standard(Actual data rate may vary, Wi-Fi 7 channels on 6GHz band availability depends on individual country's, Wi-Fi 7 features require Windows 11 SV3 to function properly (There is no
