Brak towaru

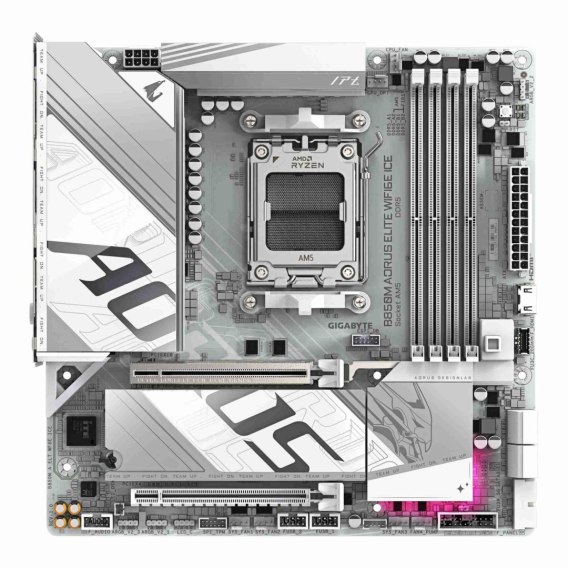

Płyta Gigabyte B850M A ELT WF6E ICE /AMD B850/DDR5/SATA3/M.2/USB3.2/PCIE5.0/WiFi/BT/AM5/M-ATX
Symbol:
B850M A ELT WF6E ICE
Dostępność:
Brak towaru
0
szt.
![]()
Wpisz swój adres e-mail
871,59 zł
Zamówienie telefoniczne: 606906465 Zostaw telefon
Wysyłka w ciągu:
24 godziny
Cena przesyłki:
0,00 zł
Obsługiwane typy procesorów: AMD Ryzen™
Uwagi do procesora: Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Format płyty: Micro-ATX
BIOS: 256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset płyty głównej: AMD B850
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 256 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-8200 (OC), DDR5-8000 (OC), DDR5-7950 (OC), DDR5-7900 (OC), DDR5-7800 (OC), DDR5-7600 (OC), DDR5-7400 (OC), DDR5-7200 (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6600 (OC), DDR5-6400 (OC), DDR5-6200 (OC), DDR5-6000 (OC), DDR5-5800 (OC), DDR5-5600 (OC), DDR5-5200, DDR5-4800, DDR5-4400
Uwagi do pamięci RAM: Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and, Extreme Memory Profile (XMP) memory modules
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 2x M.2 - RAID 0,1,5,10
Uwagi do kontrolera SATA: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, M key, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,, M key, type 22110/2280 SSDs:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices, RAID 5 is only available on AMD Ryzen™ 9000 Series Processors
Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)
Gniazda karty graficznej: DisplayPort, HDMI
Uwagi do karty graficznej: Integrated Graphics Processor with AMD Radeon™ Graphics support:, - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 1.4 version and HDR, - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz, Support for HDMI 1.4 version, Graphics specifications may vary depending on CPU support
Zintegrowana karta dźwiękowa: Realtek ® 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej: 2x Audio Jack, Wyjście optyczne S/PDIF, Wewnętrzne gniazdo audio przedniego panelu
Uwagi do karty dźwiękowej: You can change the functionality of an audio jack using the audio software, To configure 7.1-channel audio, access the audio software for audio setting
Złącza PCI Express x16: 2
Uwagi do złącz PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, The PCIEX16 slot can only support a graphics card or an NVMe SSD, If only one graphics card is to be installed, be sure to install it in, the PCIEX16 slot, Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
Maksymalna ilość portów USB 2.0: 8
Maksymalna ilość portów USB 3.x: 11
Porty USB na panelu tylnym: 4x USB 2.0 + 4x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C + 1x USB 3.2 Type-C
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax
Port Bluetooth: Bluetooth V5.3
Uwagi do WiFi / BT: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, Support for 11be 160MHz wireless standard, Actual data rate may vary depending on environment and equipment
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: CPU fan header, CPU fan/water cooling pump header, 3x system fan headers, System fan/water cooling pump header, 3x Addressable RGB Gen2 LED strip headers, RGB LED strip header, Gniazdo modułu TPM, Reset button, Reset jumper, Clear CMOS jumper, Q-Flash Plus button, 2x SMA antenna connectors (2T2R)
Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin)
Wymiary [S x W] (mm): 244 x 244
Opakowanie: BOX
Informacje dodatkowe: Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup, Support for Windows 10 and Windows 11 64-bit, Bundled Software:, - Norton® Internet Security (OEM version), - LAN bandwidth management software
Opakowanie:
BOX
Port Bluetooth:
Bluetooth V5.3
Format płyty:
Micro-ATX
Wymiary [S x W] (mm):
244 x 244
Maksymalna wielkość pamięci:
256 GB
Port LAN:
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax
Wbudowana karta graficzna:
Brak lub AMD Radeon™ Graphics (zależy od procesora)
Chipset płyty głównej:
AMD B850
Standard pamięci:
DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-7900 (OC), DDR5-7950 (OC), DDR5-8000 (OC), DDR5-8200 (OC)
Gniazdo procesora:
Socket AM5
Obsługiwane typy procesorów:
AMD Ryzen™
Uwagi do procesora:
Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
BIOS:
256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do pamięci RAM:
Extreme Memory Profile (XMP) memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 2x M.2 - RAID 0,1,5,10
Uwagi do kontrolera SATA:
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,, M key, type 22110/2280 SSDs:, M key, type 25110/22110/2580/2280 SSDs:, RAID 0, RAID 1, and RAID 10 support for SATA storage devices, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 5 is only available on AMD Ryzen™ 9000 Series Processors
Gniazda karty graficznej:
DisplayPort, HDMI
Uwagi do karty graficznej:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz, Graphics specifications may vary depending on CPU support, Integrated Graphics Processor with AMD Radeon™ Graphics support:, Support for DisplayPort 1.4 version and HDR, Support for HDMI 1.4 version
Zintegrowana karta dźwiękowa:
Realtek ® 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej:
2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF
Złącza PCI Express x16:
2
Uwagi do złącz PCI:
- 1x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4), - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, Chipset:, If only one graphics card is to be installed, be sure to install it in, the PCIEX16 slot, The PCIEX16 slot can only support a graphics card or an NVMe SSD
Maksymalna ilość portów USB 2.0:
8
Maksymalna ilość portów USB 3.x:
11
Porty USB na panelu tylnym:
4x USB 2.0 + 4x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C + 1x USB 3.2 Type-C
Gniazda USB na płycie głównej:
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
Port PS/2:
Brak
Inne porty i gniazda:
2x SMA antenna connectors (2T2R), 3x Addressable RGB Gen2 LED strip headers, 3x system fan headers, Clear CMOS jumper, CPU fan header, CPU fan/water cooling pump header, Gniazdo modułu TPM, Q-Flash Plus button, Reset button, Reset jumper, RGB LED strip header, System fan/water cooling pump header
Gniazdo zasilania:
ATX (24-pin) + ATX12V (8-pin)
Uwagi do karty dźwiękowej:
To configure 7.1-channel audio, access the audio software for audio setting, You can change the functionality of an audio jack using the audio software
Port szeregowy (COM):
Brak
Port równoległy (LPT):
Brak
Ilość złącz pamięci DDR5:
4
Uwagi do WiFi / BT:
Actual data rate may vary depending on environment and equipment, Support for 11be 160MHz wireless standard, WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
